Truss Head Screw: When a Wider Head Solves a Real Assembly Problem
A Truss Head Screw is one of those fasteners that usually gets chosen for a practical reason rather than a dramatic one: the joint needs a broad bearing surface, a lower-profile head, and a cleaner finish than a standard pan head can always deliver. For engineers and sourcing teams, that matters. The screw head shape affects clamp load, surface contact, appearance, and sometimes even how reliably a part survives repeated assembly.
In sheet metal, plastics, light enclosures, and hardware that has to sit flush enough without going fully countersunk, this head style often earns its place. It is not the answer to every fastening problem, but when the application is sensitive to pull-through, distortion, or snagging, it can be the more forgiving option.

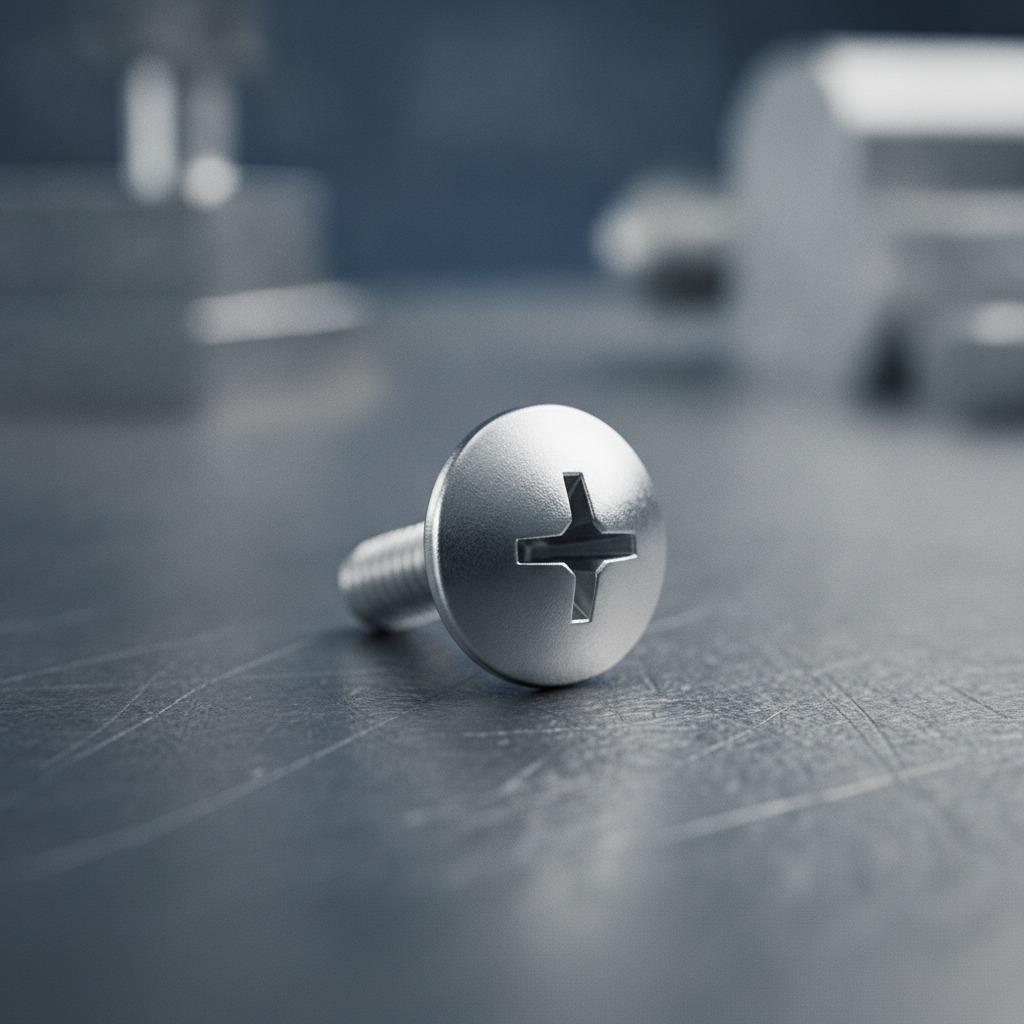

What Makes the Truss Head Different
The defining feature is the head geometry. A truss head has a wider, lower dome than a typical Pan Head Screw. That wider footprint spreads the load over a larger area, which can be useful when fastening softer materials or thin gauge components. It is also less likely to sink into the substrate, especially in plastics or composite panels where local deformation can become a nuisance.
Compared with a Countersunk Screw, the truss head does not recess into the material. That is often an advantage when the design cannot afford the extra countersink operation, when the base material is too thin, or when surface integrity matters more than a flush finish.
Where It Fits Best in Manufacturing
Truss head screws show up in equipment covers, electrical housings, appliance assemblies, HVAC components, signage, and a broad range of light industrial products. They are especially common where a wide head helps protect a finished surface or improve retention in a soft interface.
There is a practical trade-off, though. Because the head is broad and relatively low, it can be a good fit for assemblies that need coverage and load spread, but it is not always the best choice where a decorative look or a fully flush profile is the priority. If the finished product will be handled often, designers should also think about whether the head shape creates an interference point for fingers, labels, gaskets, or adjacent components.
Quick Comparison: Truss Head vs Other Common Options
Truss Head Screw
Best when you want a wide bearing surface, lower profile, and less material damage around the fastener entry point.
Pan Head Screw
A familiar general-purpose choice. It can work well in many assemblies, but it usually presents a smaller bearing area than a truss head.
Countersunk Screw
Best when the design requires a flush or near-flush surface. It usually needs a prepared recess, which adds complexity and can weaken thin material if overused.
Selection Criteria Buyers Should Not Skip
Head style is only one part of the decision. Procurement teams should also review thread type, drive style, material, coating, and the substrate being fastened. A screw that looks suitable on a drawing can still behave poorly if the drive recess strips too easily, if the coating is not compatible with the environment, or if the material pair encourages corrosion.
For buyers, one useful question is simple: what is the screw expected to do beyond holding two parts together? If it also needs to control appearance, prevent pull-through, protect a fragile panel, or simplify assembly on a production line, the truss head may have a clear advantage.
Another point worth flagging is torque control. Broad-head screws can sometimes mask an over-tightened joint until the material starts to deform. That is not dramatic in a prototype, but on a line with mixed operators or variable substrates, it can become a real consistency issue.
Common Mistakes in Specifying Head Style
One common error is assuming a broader head automatically means a stronger joint. It improves load distribution, yes, but it does not replace proper thread engagement or material selection. Another mistake is choosing a low-profile head without checking tool access. If the driver cannot seat properly, the assembly team will feel it immediately.
Designers also occasionally use a countersunk approach where the panel is too thin for it. That can lead to distortion, cracking, or a weaker surface around the hole. In those cases, a truss head may be the cleaner and safer compromise.
Practical Buyer Advice
If you are sourcing screws for a new product or an ongoing build, request samples early and test them in the actual part, not just in a generic test coupon. A truss head screw can look ordinary on paper and still change how the surface behaves under clamp load.
It is also smart to ask how the head will interact with paint, powder coat, molded plastic, or gasket surfaces. The broader profile can be helpful, but only if the assembly tolerances and surrounding geometry support it. That small detail is easy to overlook during release, then expensive to fix after tooling.
FAQ
Is a Truss Head Screw the same as a Pan Head Screw?
No. They are similar in that both are non-countersunk head styles, but a truss head typically has a wider bearing surface and a lower profile.
When should I choose a Countersunk Screw instead?
Choose a countersunk screw when the finished surface needs to be flush and the material can accept the recess without losing strength or creating distortion.
Are truss head screws better for soft materials?
Often, yes. The wider head can help spread the load and reduce pull-through or indentation, though the exact result depends on the full assembly design.
Next Step for Engineering and Sourcing Teams
If you are deciding between a truss head, pan head, or countersunk configuration, start with the substrate and the finished-surface requirement. That usually narrows the choice quickly. From there, confirm drive compatibility, corrosion needs, and assembly constraints before committing to production. A small head-style decision can save a lot of rework later, which is probably why experienced buyers pay attention to it in the first place.
